NPC-22T
产品详细

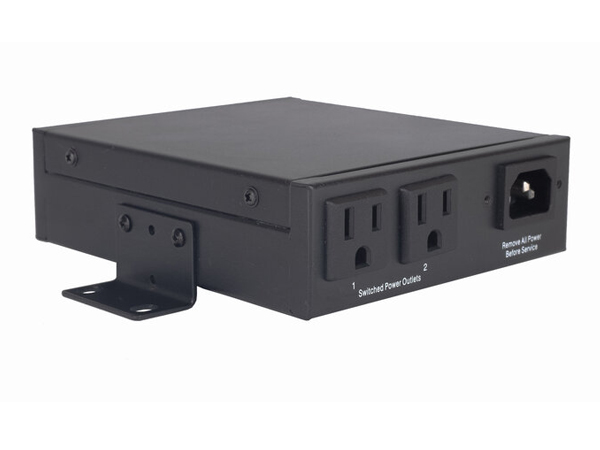

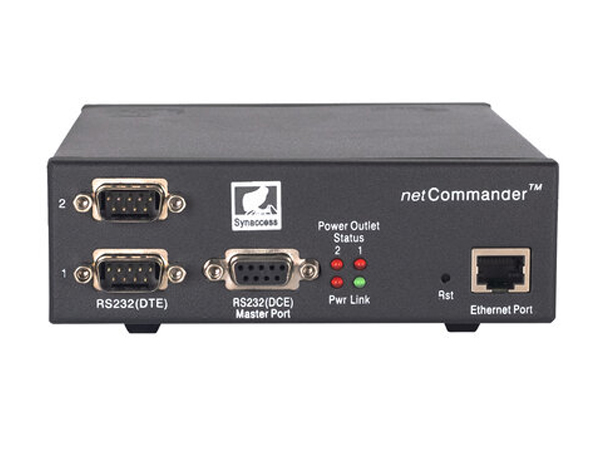

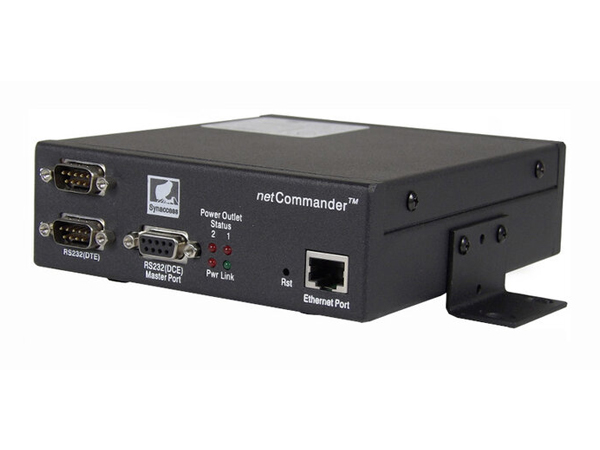

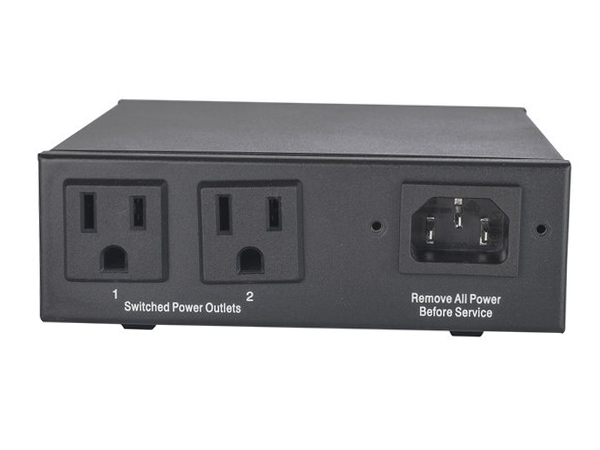

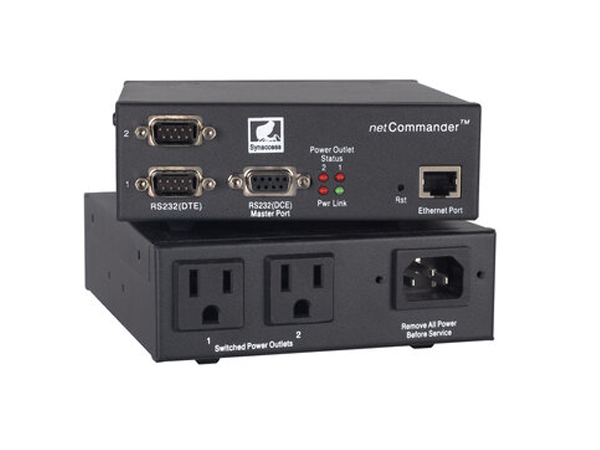

netCommander™ NPC-22T PDU 提供智能远程电源管理，通过TCP/IP网络或直接串行连接进行管理，2个插座输出并能独立控制，2个串口输出，每个串口可单独通讯，设备外形小巧，能适应任何地方。
NPC-22T: 1个输入插座 IEC320-C14，2个输出插座NEMA 5-15R
NPC-22T01: 在NPC-22T基础上增加输入电流检测功能
| Item | NPC-22T | NPC-22T01 |
|---|---|---|
| Physical Dimensions | 6.15” x 5.40” x 1.75” Compact | |
| Input Power Voltage | 120VAC, 60Hz | |
|
Total Load (Combine all AC outlets) |
13 Amps Max | |
| Power Input | 1 - IEC 320 C14 | |
| AC Outlet Type | 2 - NEMA 5-15R | |
| AC Current Draw Monitoring | None | 1 - Input current sensor |
| Local Console Interface |
1 - RS232 Port. DB9 Connector. Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200 |
|
| User Console Interface |
2 - RS232 Port. DB9 Connector. Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200 |
|
| Network Interface | 10/100-Base T. RJ-45 | |
| Network Protocals | ICMP, IP/TCP, NTP, SMTP, SNMP, DHCP, Telnet, HTTPS/HTTP and BootP | |
| LED Indicators |
2 - Power outlet On/Off status LEDs 1 - Network LED 1 - Device Power LED |
|
| Weight | 2 lbs | |
| Operational Temperature | -25C° – 50C° | |
| Humidity | 5-95%, non-condensing | |
| UL/FCC Compliance | TUV(US), UL-60950, FCC Class B | |
