NP-0201DU
产品详细

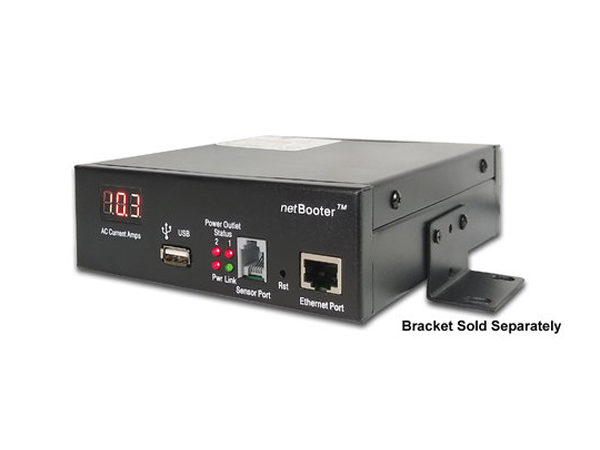

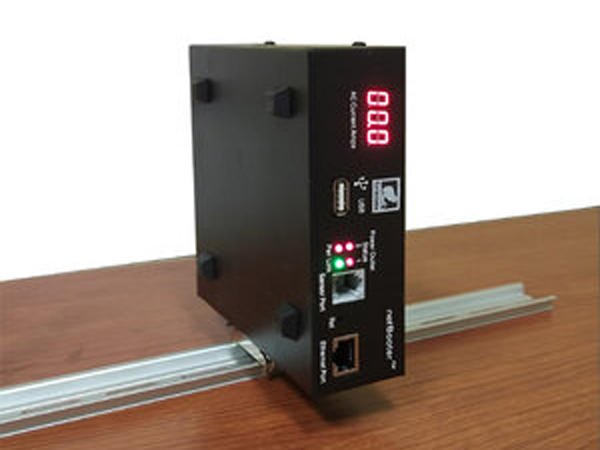

netBooter™NP-0201DU / NP-0201DUH PDU 提供智能远程电源管理，通过TCP/IP网络或直接串行连接进行管理，2个插座输出并能独立控制，具备电流检测功能，实时监控设备总电流大小，并可外接温度探头，了解设备运行环境温度,外形小巧，能适应任何地方。

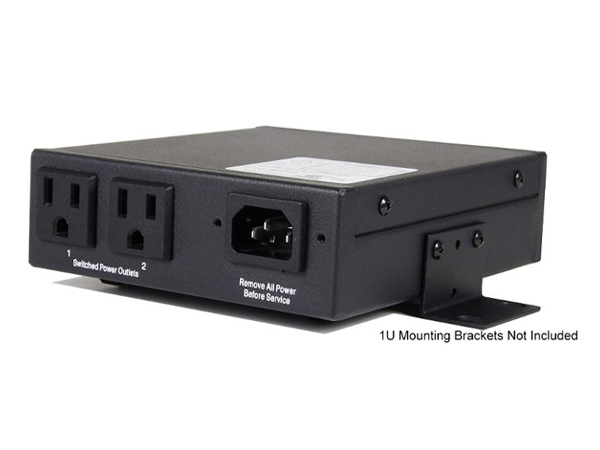

NP-0201DU: 1个输入插座 IEC320-C14，2个输出插座NEMA 5-15R

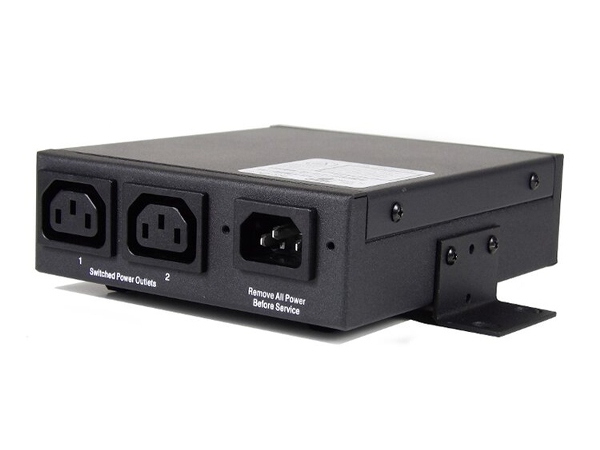

NP-0201DUH: 1个输入插座 IEC320-C14，2个输出插座IEC320-C13
| Item | NP-0201DU / NP-0201DUH(H Model) | ||
|---|---|---|---|
| Physical Dimensions | 6.15” x 5.40” x 1.75” Compact | ||
| Input Power Voltage | 120VAC, 60Hz / 220VAC 50 HZ (H model) | ||
|
Total Load (Combine all AC outlets) |
13 Amps Maxat 120VAC / 10A at 220VAC(H modle) | ||
| Power Input | 1 - IEC 320 C14 (Inlet) | ||
| AC Outlet Type | 2 - NEMA 5-15R (Outlet) / IEC320-C13 (H model) | ||
| AC Current Draw Monitoring | 1 - Input current sensor | ||
| Console Interface |
1 - USB Port. Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200. |
||
| Network Interface | 10/100-Base T. RJ-45 | ||
| Network Protocals | ICMP, IP/TCP, NTP, SMTP, SNMP, DHCP, Telnet, HTTPS/HTTP and BootP | ||
| LED Indicators |
2 - Power outlet On/Off status LEDs 1 - Network LED 1 - Device Power LED |
||
| Weight | 2 lbs | ||
| Operational Temperature | -25C° – 50C° | ||
| Humidity | 5-95%, non-condensing | ||
| UL/FCC Compliance | TUV(US), UL-60950, FCC Class B | ||
