NP-02B/NP-02BH
产品详细

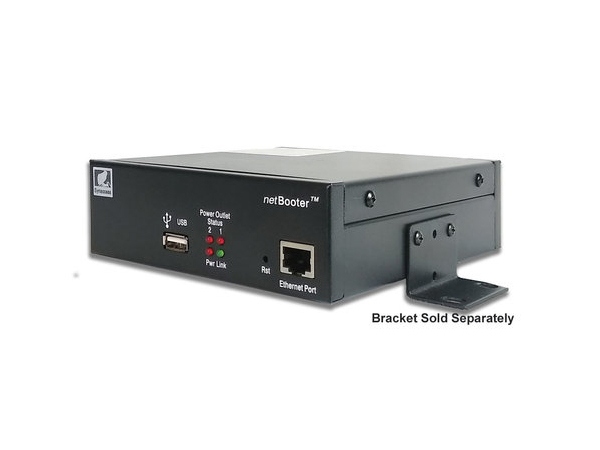

netBooter™NP-02B / NP-02BH PDU 提供智能远程电源管理，通过TCP/IP网络或直接串行连接进行管理，2个插座输出并能独立控制，外形小巧，能适应任何地方。

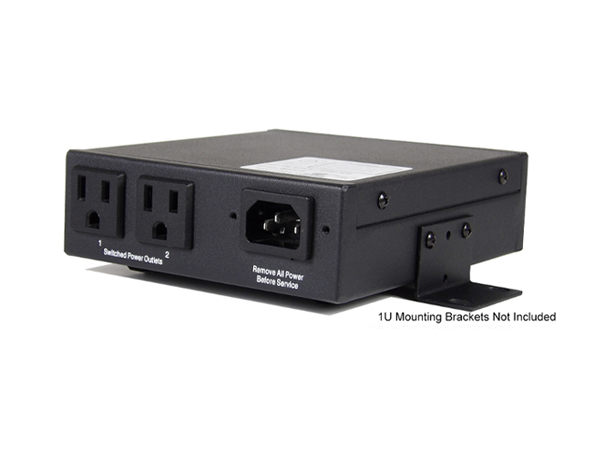

NP-02B: 1个输入插座 IEC320-C14，2个输出插座NEMA 5-15R

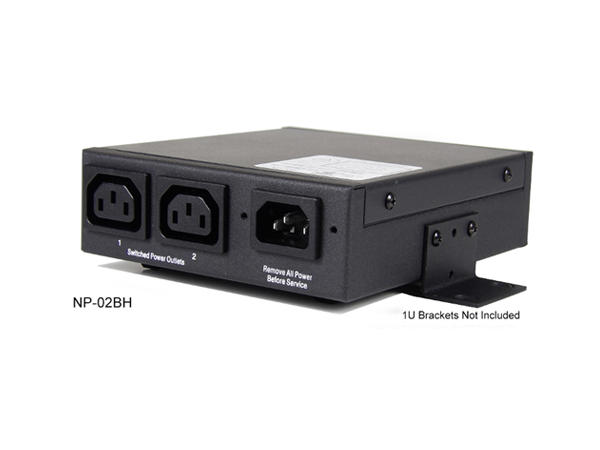

NP-02BH: 1个输入插座 IEC320-C14，2个输出插座IEC320-C13
| Item | NP-02B | NP-02BH |
|---|---|---|
| Physical Dimensions | 6.15” x 5.40” x 1.75” Compact | |
| Input Power Voltage | 120VAC, 60Hz | 100 - 220VAC, 50/60 Hz |
| AC Power Inlet Type | 1 - IEC 320 C14 (Inlet) | |
| AC Outlet Type | 2 - NEMA 5-15R (Outlet) | 2 - IEC-320 C13 (Outlet) |
| AC Current Draw Monitoring | None | |
|
Total Load
(Combine all AC outlets)
|
13 Amps @ 120 VAC | 10 Amps @220VAC |
| Network Interface | 10 Base-T Ethernet, RJ-45 | |
| Network Protocals | ICMP, IP/TCP, NTP, SMTP, DHCP, Telnet, HTTP and BootP | |
| Local Serial Port | USB or RS-232 Serial port. Baud Rate from 2400 to 19200. | 1 - RS-232 Serial port. Baud Rate from 2400 to 19200 |
| LED Indicators |
2 - for Power Outlet ON/Off Status 1 - for Input Power On/Off 1 - for Network Status |
|
| Operational Temperature Environment | -22F°-122F°(-25C°-50°) | |
| Humidity | 10-90% RH | |
| UL/FCC Compliance | TUV(US), UL-60950, FCC Class B | |
